Recycling Machine Plant Tire Shredder

Share to:
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Terms of Trade: FOB,CFR,CIF
Min. Order: 1
Delivery Time: 30
Basic Info
Model No.:JT-800
Automation: Automatic
Certification: ISO, CE
Screw: Multi-Screw
Knife Type: Piece Knife Crusher
Product Name: Recycling Machine Plant Tire Shredder
Application: Tire Crusher
Type: Shredding Machine
Warranty: 12 Months
Usage: Tyre Shredder
Output: 8-10t
Weight: 3.5-9.6t
Broken Size: 3-10cm
Installation: Provide
Keywords: Shredder Machine
Additional Info
Packaging: Container Loading
Productivity: 3.5-9.6t
Brand: Mingyuan
Transportation: Ocean
Place of Origin: Henan, China
Supply Ability: 5 sets per month
Certificate: CE, ISO
HS Code: 8477800000
Port: Qingdao Port,Tianjin Port,Shanghai Port
Product Description

Introduction of Recycling Machine Plant Tire Shredder

Shaft shredder, also known as shear shredder, by cutting , tearing and extrusion materials to achieve reduced size, this shredder is widely used in waste plastics, rubber, wood, straw and other large the volume of waste, is to experience the manufacturing of such equipment in Europe and America thirty years of the introduction of China, and according to the actual situation to improve,research and development, the introduction of the technology is mature and advanced design of biaxial shredder series for waste recycling volume reduction processing provides a guarantee.

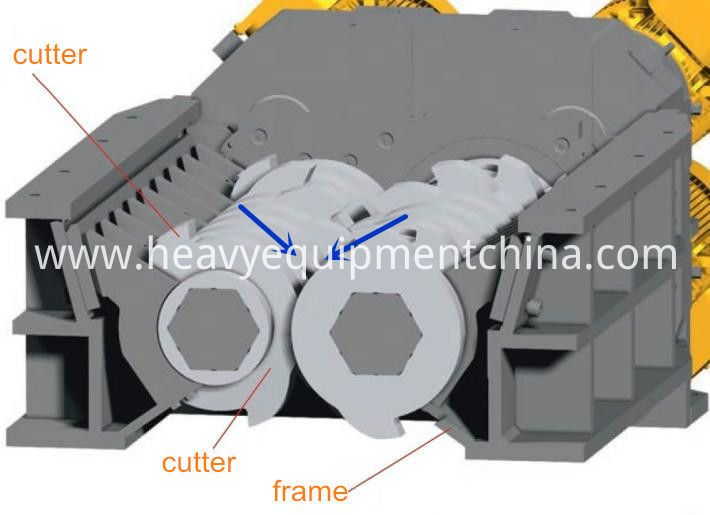

Working Principle of Recycling Machine Plant Tire Shredder

The basic principle Shredder Machine are to use the basic principle of the cutting machine, and the unloading port adopts the filter Conveyor, high-speed high torque motor drive the rotor cutting machine to rotate the main engine. Material that strikes the cavity is broken, and the space between the lining and the tool is broken into fragments that conform to the specification by forming the material. According to the working conditions, the system can be divided into dry-wet system and sub-humid system.

Heavy Duty Shredder Machine

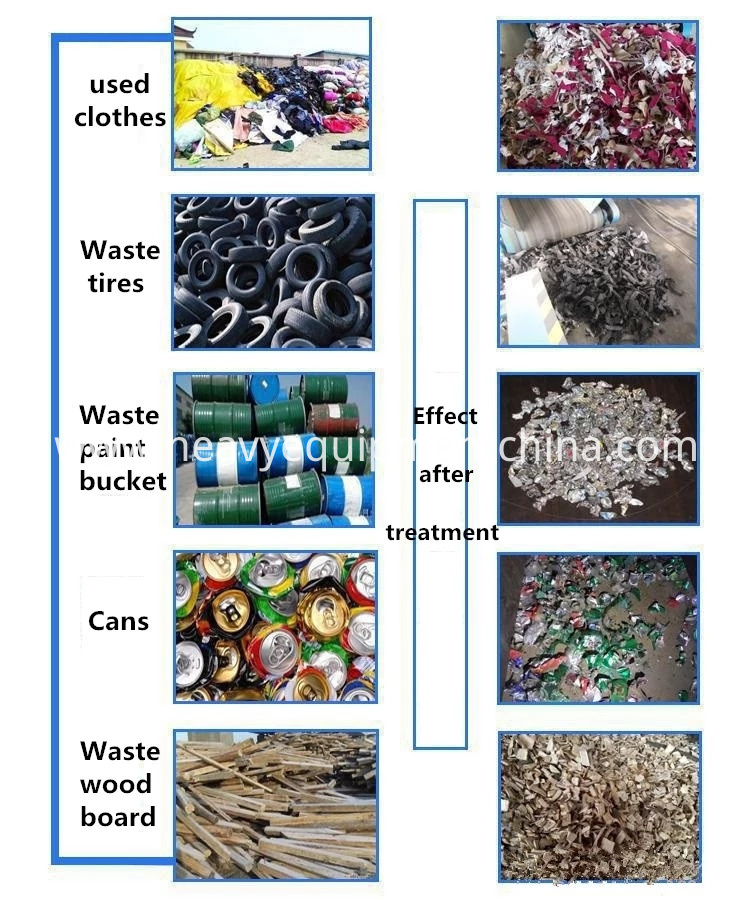

Product Application for Recycling Machine Plant Tire Shredder

Materials can be processed by Mingyuan top quality two shaft shredder:
*All types of tires--- Car tires, van tires, truck tires, mining tires, OTR tires etc;
*Metal--- Car body, Baled aluminium,Scrap steel, Paint bucket;
*Cables--- Copper cable, Aluminium cable,etc;
*E-waste---Home applicance( Refrigerator,Printer, Washer,Air Conditioner),PCB board;
*Wood/Timber--- Pallets, Waste wood borad,stalk or biological straws;
*Solid Waste--- Mixed Household & Commercial Waste - RDF/SRF Production
*Paper & Cardboard --- Confidential Documents, Production Waste, Packaging Materials etc.

*Plastics --- Various rigid and flexible plastics including Mouldings, Purgings/Lump, Profiles, Films etc.

Recycling Machine Plant Tire Shredder

Specification of Recycling Machine Plant Tire Shredder

Motor 1900 1500 1000 500
Spindle power(kw) 6-55 8-55 6-45 8-45 6-37kw 8-37kw 4-7.5kw 4-7.5kw
Spindle speed(r/min) 40, 30 40,30 40,30 35,35
Output (t) 8-10 6-8 3-6 1-3
Weight(kg) 9600 7500 5200 3500
Conveyor Power (kg) 4-3kw 4-3kw -- --
Knife plate number 50 40 40 16
Broken size(cm) 3-10 3-10 3-10 3-10
Slio Size(m) 1.6*2.5 1.2*1.8 0.8*1 0.7*0.75
L*W*H (m) 6.5*1.6*2.4 5.2*1.5*2.4 2.9*1.5*1.7 2.1*0.85*1.6

Advantage of Recycling Machine Plant Tire Shredder:

1. The machine is suitable to process very big size of plastic material, such as plastic pipe, plastic board, wood, woven bags, tire, aluminum cans, little diameter of copper wire and pressing plastic film which the single Shaft plastic shredder can not process, new designed especially for crushing the film in rolls, hollow barrels and so on.
2. The machine with big feeding mouth, it can put the big plastic product freely.
3. The rotary blade and cutting blade and blade edge with special design, it can get very high efficiency and high capacity
4. The machine is control by PLC system, . The knife can rotated in opposite direction, and also can close automatic if something unexpected happen, with very high safety service
5. The machine running slowly with low noise and low dust
6. The knife material is SKD-11, with long lifetime and hardness.



Looking for ideal Recycle Machine Shredder Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Tire Shredder Machine are quality guaranteed. We are China Origin Factory of Tyre Shredder Machine. If you have any question, please feel free to contact us.
