Home > Products > Crushing And Screening Machine > Screening Machine > Chrome Stone Powder Separating Machine Vibrating Screen
Online Service

Chrome Stone Powder Separating Machine Vibrating Screen

Share to:
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Terms of Trade: FOB,CFR,CIF
Min. Order: 1
Delivery Time: 30
Download:
Basic Info
Model No.:3YK1236
Type: Circular
Function: Thin Oil Shaker, High Frequency Vibrating Screen
Transmission Structure: Electromagnetic Shaker
Usage: Mine Shaker, Experiments Shaker, Lightweight Fine Shaker
Works: Rotary Vane Shaker
Object: Ore
Shaft Number: Double
Running Track: Circular Vibrating Screen
Supporting Device: Plate Spring
Warranty: 1 Year
Customized: Customized
Condition: New
Product Name: Chrome Stone Powder Separating Machine Vibrating Screen
Applicable Material: Chemicals, Mine, Coal, Sand And Gravel
Feed Opening Size: 400mm
Layer Quantity: 1-4
Material Of Frame: Q235
Motor Brand: Simens
Inclination: 20
Motor Power: 15kw
Weight: 5.8t
Keywords: Vibrating Screen
Additional Info
Packaging: Container Loading
Productivity: 30-700 m3/h
Brand: Mingyuan
Transportation: Ocean
Place of Origin: Henan, China
Supply Ability: 20 Sets per month
Certificate: CE, ISO
HS Code: 8474202000
Port: Qingdao Port,Tianjin Port,Shanghai Port
Product Description

Brief introduction of Chrome Stone Powder Separating Machine Vibrating Screen

YK series vibrating screen is used to separate the material into different sizes for further processing. Or for end use. It depends on our needs. Material is separated by a vibrating sieve box, which has many sizes of sieves, or sieves. Material falls like a sieve, and the material falls onto a Conveyor belt containing the final product. The final product can be used in the construction and construction industries.

Working principle of Chrome Stone Powder Separating Machine Vibrating Screen

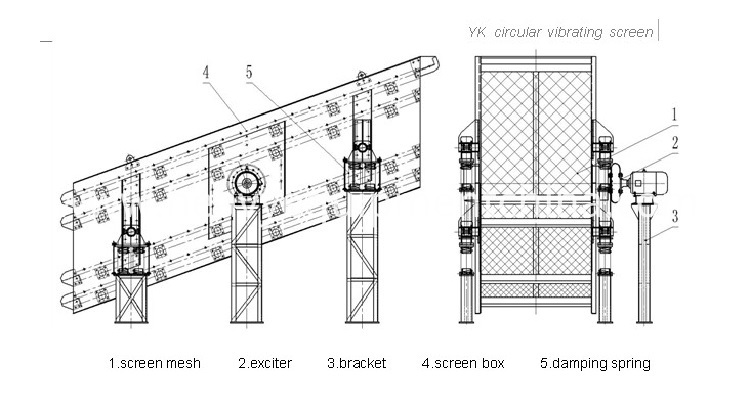

It adopts tubular strong YK series eccentric shaft and eccentric block circular vibrating screen to adjust amplitude. The body moves in a circle so that the material is shielded. Vibrating screen is a new type of multi-layer high efficiency vibrating screen. It adopts eccentric shaft exciter and block amplitude adjustment, the material streamline is long, the sieving specifications are different, the structure is reliable, the vibration force is strong, the sieving efficiency is high, the noise is low, durable. Easy maintenance, use safety, etc. And it is widely used in product classification of mining, building materials, transportation, energy, chemical industry and other industries.


Vibrating Screen For Sand

Specification of Chrome Stone Powder Separating Machine Vibrating Screen


Model Screen
deck
Mesh
size
(mm)
Feed
Size (mm)
Capacity
(t/h)
Power
(kw)
Sieve
Obliquity
(°)
Weight (kg) Overall
Dimension
(mm)
2YK1125 2 4-50 400 8-60 5.5 20 2500 3040*1840*800
3YK1125 3 4-50 400 10-70 5.5 20 2850 3040*1840*1200
2YK1230 2 4-50 400 12-78 7.5 20 3000 3390*1900*800
3YK1230 3 4-50 400 13-80 7.5 20 3600 3537*1900*1200
2YK1237 2 4-50 400 15-86 7.5 20 3600 4090*1900*800
3YK1237 3 4-50 400 16-90 7.5 20 4200 4400*1950*1200
2YK1535 2 5-50 400 20-125 11 20 4890 4552*2250*900
3YK1535 3 5-50 400 21-125 11 20 5700 4552*2250*1600
2YK1545 2 5-50 400 22-150 15 20 5330 5440*2250*1600
3YK1545 3 5-50 400 22-150 15 20 5800 5440*2250*1700
2YK1548 2 5-50 400 22.5-162 15 20 5980 5300*2200*860
3YK1548 3 5-50 400 22.5-162 15 20 6600 5752*2200*1600
2YK1848 2 5-80 400 25-260 15 20 7080 6140*2470*1380
3YK1848 3 5-80 400 32-276 18.5 20 7600 6140*2710*1780
2YK1854 2 5-80 400 32-312 18.5 20 8150 6500*2600*1300
3YK1854 3 5-80 400 32-312 22 20 8840 6960*2600*1630
2YK2160 2 5-100 400 50-475 30 20 9780 7300*2950*2000
3YK2160 3 5-100 400 50-475 30 20 10800 7300*2950*2000

Advantages of Chrome Stone Powder Separating Machine Vibrating Screen

1. Advanced structure, powerful exciter and safe operation;
2. Small amplitude, high frequency, good separation result and high capacity;
YA circular vibrating screen trajectory is circular, for coal, mining, metallurgy, building materials, electricity, water conservation, light industry and chemical industry waste classification as use small contributions waste classification. This series adopts high-strength bolts connecting sieve frame structure, a large clearance bearings lubricated vibrator rare. With usage of advanced structure, solid and durable, low noise, easy maintenance.
3. Made from international standard boiler steel plate, connected by high strength screw bolt, which makes it sturdy and durable;
4. Adopt air-cooling technology of vibration exciter, longer bearing service life;

5. Lower operating noise, lower power consumption and easy maintenance.



Mobile Vibrating Screen
