Home > Products > Crushing And Screening Machine > Sand Washing Machine > Soil Sand Washing Machine For Sale
Online Service

Soil Sand Washing Machine For Sale

Share to:
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Terms of Trade: FOB,CFR,CIF
Min. Order: 1
Delivery Time: 30
Download:
Basic Info
Model No.:XSD2600
Type: Bucket Sand Washer
Capacity: 150-200t/h
Water Consumption: 10-80t/h, 1-1.5 T
Speed of Screw: 16rpm
Motor Type: AC Motor
Certification: ISO, CE
Rotation Speed: 0.8-1.2 r/min
Wheel Bucket Diameter: 2200mm
Screw Diameter: 750mm
Product Name: Soil Sand Washing Machine For Sale
Feeding Size: Less Than 10mm
Screw Material: Mn Steel
Optional Capacity: 50 TPH, 80TPH, 300TPH
Optional Sand Washer: Wheel Type Sand Washer
Rotary Dryer: Available
Applicable Material: Sand, Ore, Coal, Gravel
Weight: 11.11Tons
Keywords: Sand Washing Machine
Additional Info
Packaging: Container Loading
Productivity: 20-200TPH
Brand: Mingyuan
Transportation: Ocean
Place of Origin: Henan, China
Supply Ability: 20 Sets per month
Certificate: CE, ISO
HS Code: 8474100000
Port: Qingdao Port,Tianjin Port,Shanghai Port
Product Description

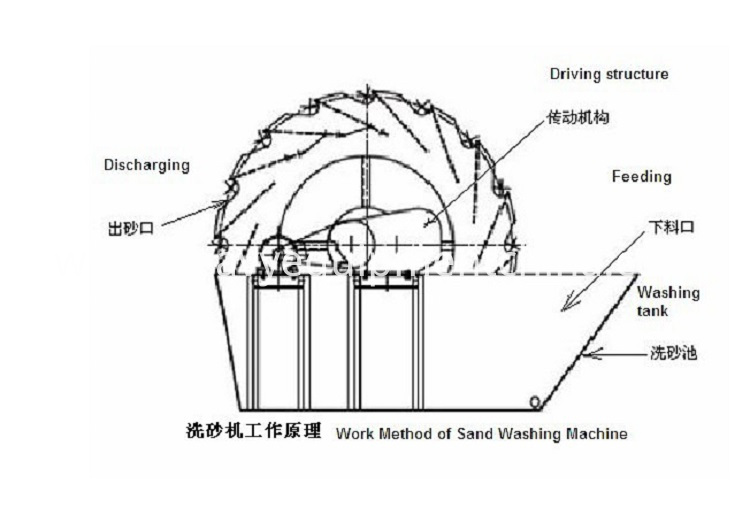

Working principle of Soil Sand Washing Machine For Sale

When the motor works, the motor drive impeller runs slowly after the V belt, reducer and gear decelerate. Sand enters the sink through the feeding trough, and the impellers push the rolls, rubbing each other to remove impurities covering the sand surface, destroying water vapor conducive to dehydration; At the same time, strong water flow takes away impurities and discharges them from the overflow. The clean grinding wheel is taken away by the impeller, and when it rises, water drops from the net into the sink, which can dehydrate and save water. Finally, the sand is poured into the unloading chute to complete the cleaning.

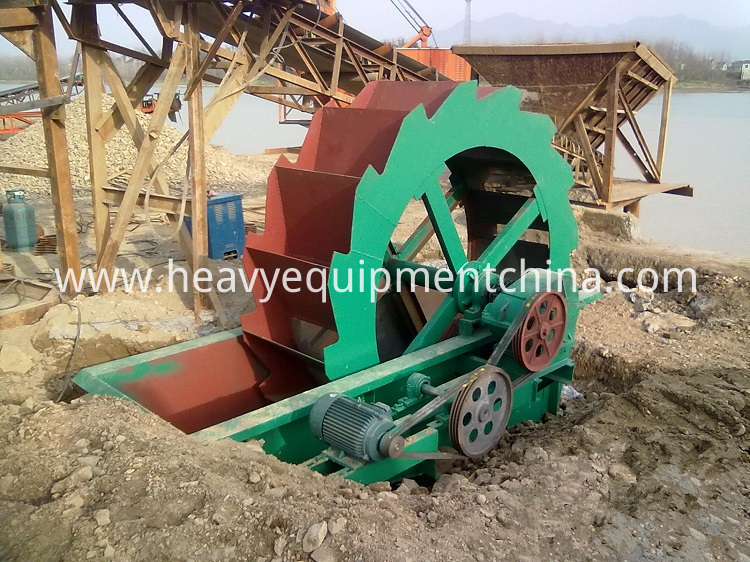

Soil Sand Washing Machine For Sale

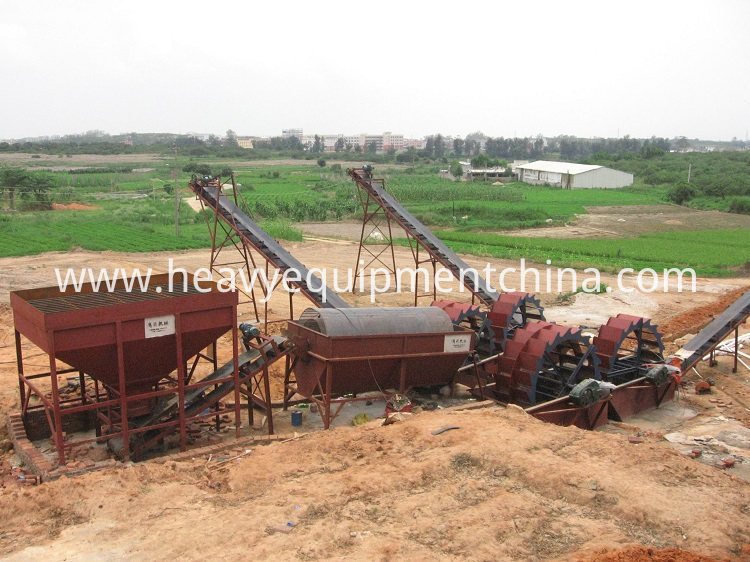

Sand washing equipment is applied for washing applications in sand plant, mine, concrete batching plant, and industries like building materials production, transportation, chemistry, water conservancy, etc. The new sand washing machine adopts the advantage technology in the world with high energy sowing. It has such features as resonable structure, large capacity, high washing degree,less of medium and fine sand, less breadown and less wear with driving part separated from water and sand. Its breakdown rate is much lower than spiral sand washer. This machine has become customer's priority to choose in the sand industry domestic and aboard.


Soil Sand Washing Machine

Specification of Soil Sand Washing Machine For Sale

Model

XL508

XL610

XL762

XL915

2XL915

XL1115

2XL1115

Screw Diameter(mm)

508

610

762

915

915

1115

1115

Length of Tub(mm)

6705

7225

7620

7585

7585

9782

9782

Max Feed Size(mm)

≤ 10

≤ 10

≤ 10

≤ 10

≤ 10

≤ 10

≤ 10

Capacity
(t/h)

20

40-50

50-75

100

200

175

350

Speed of Screw
(r/min)

38

32

26

21

21

17

17

Motor Power
( kw)

5.5

7.5

11

11

2×11

15

2×15

Water Consumption

(t/h)

6-60

6-63

9-63

10-80

20-160

20-150

40-300

Overall Dimensions

(mm)(L×W×H)

8000×2343
×1430

8000×2050
×1400

8545×2650
×3862

8500×2810
×3600

8420×3765
×3960

10970×3945
×4720

10970×5250
×4720

Weight(t)

2.67

3.80

5.23

6.27

11.11

10.18

17.94


Company Information

Henan Mingyuan Heavy Industry Machinery Co., LTD is one high-tech enterprise, which involves R&D, manufacturering, sales and service as well. In the past 20 years, we devote ourselves to producing mining equipments such as Soil Sand Washing Machine For Sale, Jaw Crusher, fine crusher, Impact Crusher hammer mill crusher, vsi sand maker, cone crusher, sand washing machine( both wheel type and spiral), Rotary Dryer, Ball Mill, Rotary Kiln, Cement Ball Mill, Magnetic Separator, belt Conveyor , shaking table, spiral chute, and so on.

In recently years, we have developped our business in new areas, such as grain dryer, waste material recycling plant for waste tyre, rubber, bottle, and so on. for all equipment we provide we can send our experienced engineer to your workshop to guide the installtion until the whole plant works normally.


Spiral Sand Washing Machine


River Sand Washing Machine


Features of Soil Sand Washing Machine For Sale

1. The machine is with high efficiency, reasonable structure, high capacity, low consumption and easy maintenance.
2. Drive Bearing device is separated from water and materials, which is greatly to avoid the bearing damaged due to soaking, touching sand and other pollutants.
3. Compared with the spiral sand washing machine, the loss of medium and fine sand as well as powder is minimal, so the grade and fineness modulus of washed building sand can meet the required standard.

River Sand Washing Machine

Looking for ideal Sand Washing Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Spiral Washer Machine are quality guaranteed. We are China Origin Factory of River Sand Washing Machine. If you have any question, please feel free to contact us.
