Mobile Mini Screw Sand Washing Machine

Share to:
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Terms of Trade: FOB,CFR,CIF
Min. Order: 1
Delivery Time: 30
Download:
Basic Info
Model No.:XSD2600
Type: Bucket Sand Washer
Capacity: 100-150t/h
Water Consumption: 10-80t/h, 1-1.5 T
Speed of Screw: 16rpm
Motor Type: AC Motor
Certification: ISO, CE
Rotation Speed: 0.8-1.2 r/min
Wheel Bucket Diameter: 2200mm
Screw Diameter: 750mm
Product Name: Mobile Mini Screw Sand Washing Machine
Feeding Size: Less Than 10mm
Screw Material: Mn Steel
Optional Capacity: 50 TPH, 80TPH, 300TPH
Optional Sand Washer: Wheel Type Sand Washer
Rotary Dryer: Available
Applicable Material: Sand, Ore, Coal, Gravel
Weight: 11.11Tons
Keywords: Sand Washing Machine
Additional Info
Packaging: Container Loading
Productivity: 20-200TPH
Brand: Mingyuan
Transportation: Ocean
Place of Origin: Henan, China
Supply Ability: 20 Sets per month
Certificate: CE, ISO
HS Code: 8474100000
Port: Qingdao Port,Tianjin Port,Shanghai Port
Product Description

Mobile Mini Screw Sand Washing Machine

XSD series of high-efficiency sand washing machine equipment is developed on the basis of introducing advanced technology of similar products from abroad. It has the international advanced level of sand and slag pellet cleaning equipment. Sand washing machine equipment is widely used in quarrying, mineral, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixing station and other industries material cleaning.

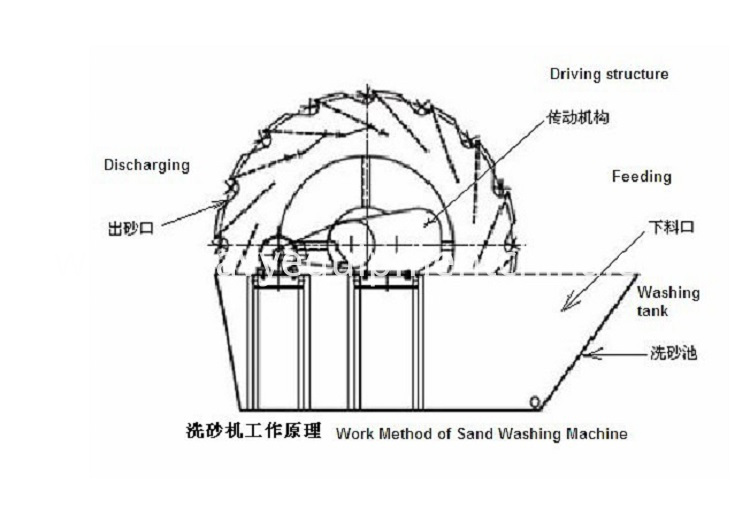

Working principle of Mobile Mini Screw Sand Washing Machine

The compound of sand and water is transported to the cyclone by pump, and the fine sand after centrifugal classification concentration is provided to the vibrating screen by the grit setting mouth, after vibrating screen dewater, the fine sand and water are effectively separated. Through the recycling box, little fine sand and mud return again to the rinse tank, and then they are exhausted from the discharge hole when the rinse tank liquid level is too high. The material weight concentration recovered by the linear vibrating screen is 70%-85%. Adjusting the fineness module can be realized by changing the pump rotating speed and pulp concentration, regulating the overflow water yield and replacing the grit mouth, thus achieves its three functions-washing, dewater and classification.

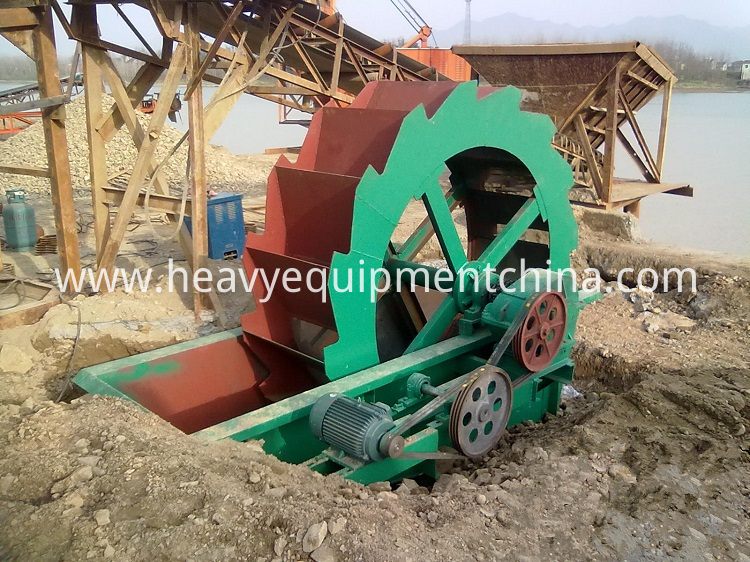

Sand Washing Machine

Specification of Mobile Mini Screw Sand Washing Machine

Model

XL508

XL610

XL762

XL915

2XL915

XL1115

2XL1115

Screw Diameter(mm)

508

610

762

915

915

1115

1115

Length of Tub(mm)

6705

7225

7620

7585

7585

9782

9782

Max Feed Size(mm)

≤ 10

≤ 10

≤ 10

≤ 10

≤ 10

≤ 10

≤ 10

Capacity
(t/h)

20

40-50

50-75

100

200

175

350

Speed of Screw
(r/min)

38

32

26

21

21

17

17

Motor Power
( kw)

5.5

7.5

11

11

2×11

15

2×15

Water Consumption(t/h)

6-60

6-63

9-63

10-80

20-160

20-150

40-300

Overall Dimensions(mm)
(L×W×H)

8000×2343
×1430

8000×2050
×1400

8545×2650
×3862

8500×2810
×3600

8420×3765
×3960

10970×3945
×4720

10970×5250
×4720

Weight(t)

2.67

3.80

5.23

6.27

11.11

10.18

17.94



Company Information

Henan Mingyuan Heavy Industry Machinery Co., LTD is one high-tech enterprise, which involves R&D, manufacturering, sales and service as well. In the past 20 years, we devote ourselves to producing mining equipments such as Mobile Mini Screw Sand Washing Machine, Jaw Crusher, fine crusher, Impact Crusher hammer mill crusher, vsi sand maker, cone crusher, sand washing machine( both wheel type and spiral), Rotary Dryer, Ball Mill, Rotary Kiln, Cement Ball Mill, Magnetic Separator, belt Conveyor , shaking table, spiral chute, and so on.

In recently years, we have developped our business in new areas, such as grain dryer, waste material recycling plant for waste tyre, rubber, bottle, and so on. for all equipment we provide we can send our experienced engineer to your workshop to guide the installtion until the whole plant works normally.

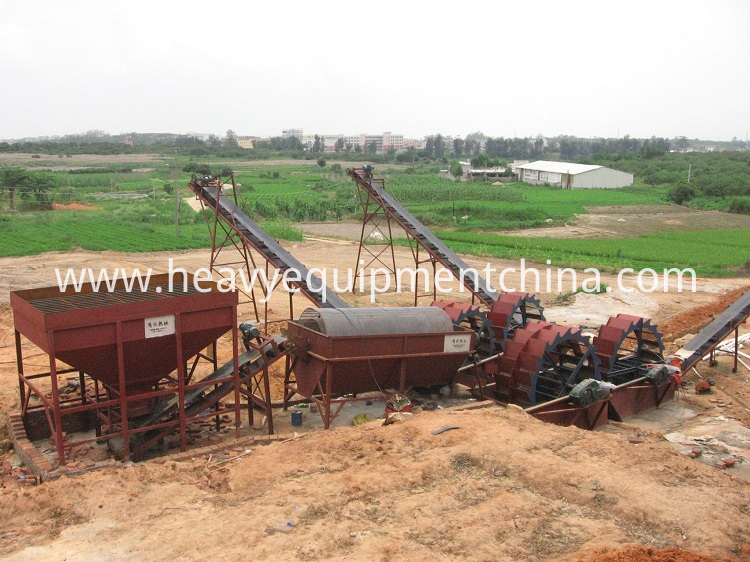

Small Sand Washing Machine

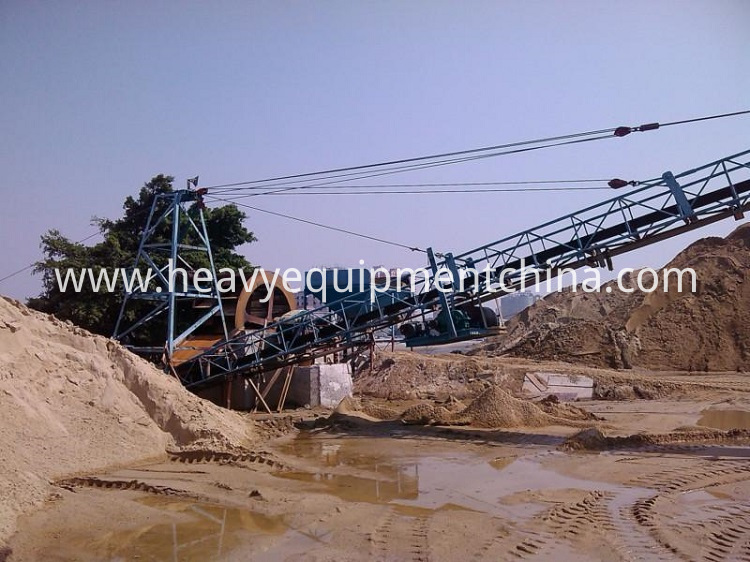

Mini Sand Washing Machine


Features of Mobile Mini Screw Sand Washing Machine

1. The machine is with high efficiency, reasonable structure, high capacity, low consumption and easy maintenance.
2. Drive Bearing device is separated from water and materials, which is greatly to avoid the bearing damaged due to soaking, touching sand and other pollutants.
3. Compared with the spiral sand washing machine, the loss of medium and fine sand as well as powder is minimal, so the grade and fineness modulus of washed building sand can meet the required standard.

Mobile Mini Screw Sand Washing Machine



Looking for ideal Sand Cleaning Washer Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Small Sand Washing Machine are quality guaranteed. We are China Origin Factory of Mini Sand Washing Machine. If you have any question, please feel free to contact us.
