Supply for Cement Grinder Factory Price Clinker Ball Mill For Cement Plant supply to Tanzania Supplier

Share to:
    Payment Type: L/C,T/T,D/P
    Incoterm: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 40 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

Our products and solutions are extensively identified and trustworthy by users and can meet up with continuously developing financial and social requirements for Clinker Grinding Equipment,Clinker Ball Mill For Sale,Clinker Ball Mill Price. We'd like to invite customers from abroad to discuss business with us. We can provide our clients with high quality products and excellent service. We are sure that we will have good cooperative relationships and make a brilliant future for both parties.

Supply for Cement Grinder Factory Price Clinker Ball Mill For Cement Plant supply to Tanzania Supplier

Brief Introduction about Clinker Grinding Equipment /Clinker Ball Mill Price / Clinker Ball Mill For Sale

Clinker Grinding Equipment or Cement Clinker Grinding Mill, Cement Clinker ball mill, is an indispensable grinding equipment for the clinker grinding plant, which usually needs to work with roller press and the powder concentrator, roller press is to crush the clinker smaller to fit the feeding size of the cement clinker grinding mill, and the powder concentrator is used to separate the required sizes after grinding. Mingyuan is a direct manufacturer of cement clinker grinding machine, and we can provide the complete clinker grinding plant, and the equipment cement manufacturing equipment, such as rotary kiln, vertical kiln, rotary cooler, dust collector, vertical preheating machine, limestone crushing and screening equipment and so on.

Cement Clinker Grinding Mill is also known as Cement Clinker Grinding Machine, Cement Grinding Machine, Clinker Grinding Equipment, which is the key clinker grinding equipment in the cement manufacturing equipment and clinker grinding plant,  the Cement Clinker Grinding Mill can be divided into two chambers, the first chamber is for the medium size grinding and the second chamber is for the fine particle grinding, after grinding, the powder will be subject to a powder concentrator, from which we get the required particle size.Mingyuan is a direct manufacturer of Clinker Ball Mill so we can provide reasonable Clinker Ball Mill Price for our clients. and we can provide different specification of Clinker Ball Mill For Sale.

Cement Clinker grinding equipment, also know as cement clinker grinding mill, it`s a fine powder grinding equipment which is a key grinding machine in cement production plant, the cement mill can be divided into three chambers, after charging different specification of grinding balls, the fineness of the cement is different, the smaller of the grinding ball, the finer powder of the cement, and it also needs a powder concentrator with the Clinker ball mill, the function of the concentrator is to choose the required sizes and the rejected sizes will go back to the cement mill for regrinding, so it applies closed-grinding circuit in the cement grinding plant. our factory can provide different specifications of cement clinker grinding mill,

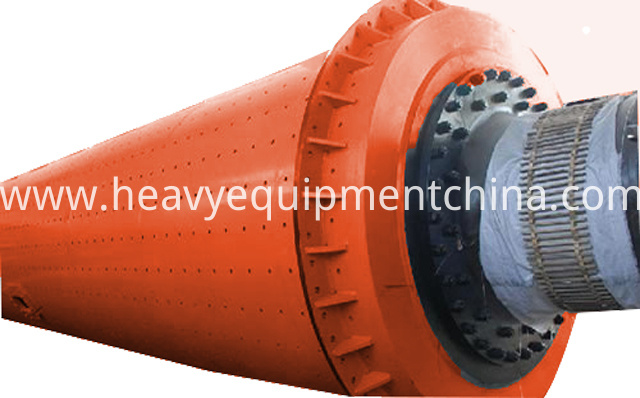

Clinker Grinding Equipment


For the components of cement clinker grinding equipment, it mainly consists of the mill shell, bearing,diaphragm, transmission device(motor and reducer) and lubrication station. It grinds the materials into fine powder mainly by using the impact and grinding force, when the mill rotates, the grinding ball is lifted to some height along with the cement clinker, then the they are dropped down due to the gravity effect, the balls will impact the clinker and break it into smaller particles, and the clinker is ground during it`s lifted to certain height. It will repeat the previous movement until the materials become the required size.

Besides the clinker, the Cement Clinker ball mill can also be used for the other materials, such as slag, chemicals, coal, quartz, etc.


Technical Parameter of Clinker Grinding Equipment /Clinker Ball Mill Price / Clinker Ball Mill For Sale


Model (D×L)

Rotary speed
(r/min)

Feed size(mm)

capacity (t/h)

ball
(t)

Main motor

Main reducer

weight
(t)

Model

Power (kw)

Rotary speed (r.p.m)

Model

Speed ratio

φ2.2×11

20.91

≤25

15~17

50

TR1512-8

570

740

Zd80

5.6

92

φ2.4×8

20.91

≤25

14~18

39.5~42

TRQ1512-8

570

740

Zd80-9

5

76.4

φ2.4×9

20.91

≤25

closed 23~25

50

TR1512-8

570

740

Zd80-9

5

91

φ2.4×10

20.91

≤25

16~22

50

TR1512-8

570

740

Zd80-9

5

111

φ2.4×11

21

≤25

open 19~24
closed 22~28

6265

YR710-8/1180

710

740

JDX630

5.6

125

φ2.4×12

21

≤25

open18~20
closed21~23

6365

YR800-8/1180

800

740

MBY710

6.3

127

φ2.4×13

21

≤25

open21~22
closed24~26

6668

YR800-8/1180

800

740

MBY710

6.3

131

φ2.6×10

20.6

≤25

21~24

64

YR800-8/1180

800

740

JDX710

6.3

140

φ2.6×13

20.6

≤25

28~31

81

YR1000-8/1180

1000

740

JDX800

6.3

158

φ3.0×9

19.13

≤25

40~45

85

YR1000-8/1180

1000

740

MBY800

7.1

148

φ3×11

18.92

≤25

44~47

95

YR1250-8/1430

1250

740

JDX900

7.1

177

φ3×12

18.92

≤25

48~52

103

YR1250-8/1430

1250

740

JDX900

7.1

182

φ3×13

18.92

≤25

39~45

116max

YR1400-8/1430

1400

740

JDX900

7.1

200.7

 Clinker Ball Mill For Sale


Our service for Clinker Grinding Equipment /Clinker Ball Mill Price / Clinker Ball Mill For Sale

1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the  life-long follow-up service.

Clinker Ball Mill PriceClinker Grinding PlantClinker Ball Mill Price

"We thinks what buyers think, the urgency of urgency to act during the interests of a purchaser position of theory, allowing for much better high-quality, reduced processing costs, charges are more reasonable, won the new and outdated consumers the support and affirmation for Factory Price Clinker Ball Mill For Cement Plant. The product will supply to all over the world, such as: Brazil,Liechtenstein,Cote D'Ivoire. To win customers' confidence Best Source has set up a strong sales and after-sales team to provide the best product and service. Best Source abides by the idea of "Grow with customer" and philosophy of "Customer-oriented" to achieve cooperation of mutual trust and benefit. Best Source will always stand ready to cooperate with you. Let's grow together!
