Mobile Impact Crushing Station For Aggregate Production Line
Mobile Impact Crushing Station For Aggregate Production Line
Mobile Impact Crushing Station For Aggregate Production Line
Mobile Impact Crushing Station For Aggregate Production Line
Mobile Impact Crushing Station For Aggregate Production Line
  • Mobile Impact Crushing Station For Aggregate Production Line
  • Mobile Impact Crushing Station For Aggregate Production Line
  • Mobile Impact Crushing Station For Aggregate Production Line
  • Mobile Impact Crushing Station For Aggregate Production Line
  • Mobile Impact Crushing Station For Aggregate Production Line

Mobile Impact Crushing Station For Aggregate Production Line

    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days

Basic Info

Model No.: VF938PF1214

Certification: CE, ISO, GOST, SONCAP, UL, CCC, API

Condition: New

Applicable Material: Granite, Pebbles, Limestone, Coal

Vibrating Feeder Model: 0938

Feeding Chute Size: 900x3800mm

Max Feeding Size: 500MM

Crushing Style: Impact

Compressive Strength (For Crushing): 250-300MPA

Crushing Degree: Intermediate Crusher

Type: Impact Crusher

Application: Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry

Drive: Electric

Finished Surface: Outer Surface Process

Color: Red

Impact Crusher Model: PF1214

Max Feed Size: 350mm

Motor Power Of Crusher: 132KW

Feed Opening: 580x1430mm

Capacity: 130-180T/h

Weight: 31000KGS

Additional Info

Packaging: Bulk Shipment

Brand: Mingyuan

Transportation: Ocean,Land

Place of Origin: Henan, China

Supply Ability: 5 set per month

Certificate: CE

HS Code: 8474200000

Port: Qingdao,Shanghai,Tianjin

Product Description

Mobile Impact Crusher or Mobile Impact Crusher Plant, sometimes is also named as mobile impact crusher station, is a fully crushing system that for different materials crushing, usually it is used as the secondary crushing, so there is a vibrating screen for screening after crushing by the impact crusher.


For different conditions, the specification of the mobile impact crusher may be a little different, for example, its components can be Vibrating Feeder with impact crusher, and it can also be a impact crusher with a vibrating screen without the vibrating feeder. the previous configuration is used for primary crushing purpose, while the later configuration is used for secondary crushing, which usually follows a Mobile Jaw Crusher. so a complete mobile impact crusher can be vibrating feeder, impact crusher and chassis, or impact crusher, vibrating screen and chassis. the mobile impact crusher can either be driven by electricity or by diesel genrator set. the two photos below show the differences between the two configurations.

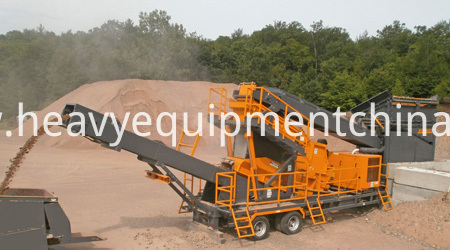

Moible impact crusher plant

Mobile Impact Crusher Station



Highlights of Mobile impact crusher /mobile impact crusher plant

  1. High performance crusher;
  2. Vehicle-mounted feeder,vibrating screen;belt Conveyor;
  3. Traction steering shaft,convenient for highway transportation;
  4. Vehicle-mounted support,for equipment site installation fast and convenient;
  5. Integration box for matching power panel and the control box;
  6. Easy to move;a handy compact structure;
  7. Stable performance,convenient to repair;flexible to configuration;
  8. Cost saving




Mobile Impact Crusher

Specification of Mobile impact crusher /mobile impact crusher plant

Model V038PF1210 V0938PF1214 V1149FE1315 V1349FE1318II
Transportation length(mm) 12000 12000 13900 15450
Transportation width(mm) 2500 2550 2900 2950
Transporation height(mm) 3900 3900 4450 4500
Max.length(mm) 12500 12500 13900 15450
Max.width(mm) 3250 3260 3250 3250
Max.Height(mm) 5100 5200 5200 5200
Weight(t) 39 44 54 62
Model of crusher PF-1210 PF-1214 PFE-1315III PFE-1318III
Max.feeding particle size(mm) 350 500 600 700
Producing capacity(t/h) 70-130 130-200 180-320 240-400
Model of feeder GZS950-3800 GZS950*3800 GZS110*4900 GZS130*4900
Model of main belt conveyor B800*8.5M B800*8.5M B1000*9.5M B1200*11M
Model of assist belt conveyor(optional) B500*3.2M B800*3.2M B600*4M B650*5M
Model of generate set(kw)(optional) 320 320 400 440
Model of de-ironing separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-12

Our Service for Mobile impact crusher /mobile impact crusher plant

1: Providing a suitable solution based on client's requirement.

2: Provide the quality products according to the specification described in the contract.

3: After delivery, we'll dispatch our engineer to the client's mining site to guide the installation, commissioning and training, until the client`s workers can operate the project smoothly.

Mobile Impact Crusher


The application of mobile impact crusher /mobile impact crusher plant

  1. Various kinds of stone crushing, such as limestone, granite, diabase, basalt, andesite, Coal, river stone, bauxite for sand and gravel making production
  2. Various kinds of mines such as chromite ore, Iron ore, Gold ore, Lead Zinc ore, Nickel ore and so on,
  3. Used in some chemical production plant, such as for the Oil Proppant Production Plant to crush the raw materials.
  4. Used in the cement production plant to crush the limestone, and cement clinker.
  5. Used in the concrete mixing station for aggregate production purpose
  6. Used for construction waste recycling, which is commonly called mobile construction waste crusher

Mobile Impact Crusher Plant



Looking for ideal Mobile Impact Crusher Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Mobile Impact Crusher Plant are quality guaranteed. We are China Origin Factory of Mobile Impact Crusher Station. If you have any question, please feel free to contact us.
