High Intensity Magnetic Separator For Magnetic Filtration
High Intensity Magnetic Separator For Magnetic Filtration
High Intensity Magnetic Separator For Magnetic Filtration
High Intensity Magnetic Separator For Magnetic Filtration
High Intensity Magnetic Separator For Magnetic Filtration
  • High Intensity Magnetic Separator For Magnetic Filtration
  • High Intensity Magnetic Separator For Magnetic Filtration
  • High Intensity Magnetic Separator For Magnetic Filtration
  • High Intensity Magnetic Separator For Magnetic Filtration
  • High Intensity Magnetic Separator For Magnetic Filtration

High Intensity Magnetic Separator For Magnetic Filtration

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT
    Delivery Time: 15 Days

Basic Info

Model No.: CTB718

Type: Magnetic Separator

Voltage: 380V

Weight: Other, 2.8T

Material: Carbon Steel

Material Feature: Heat Resistant

Certification: BV, ISO9001:2008, ISO9001:2000, CE, Other

Energy Saving: Energy Saving

Warranty: 1 Year

Color: Grey

Customized: Customized

Condition: New

Applicable Material: Hematite, Hematite, River Sand

Magnetic Field Strength: <135MT

Frame Material: Q235

Rotation Speed: 22RPM

Drum Length: 1800mm

Magnetic Field Strength Range: 800-9000 Gauss

Power: 3KW

Capacity: 25-45 Tph

Drum Diameter: 750mm

Additional Info

Packaging: Container Loading

Productivity: 30-700 m3/h

Brand: Mingyuan

Transportation: Ocean

Place of Origin: Henan, China

Supply Ability: 20 Sets per month

Certificate: CE, ISO

HS Code: 8474100000

Port: Qingdao Port,Tianjin Port,Shanghai

Product Description

For Industrial Magnetic Separators they can be divided into low intensity Magnetic Separator and high intensity magnetic separator according to the magntic field strength. the former one is to guarantee the high grade of the final content while the latter one is to make the recover rate as high as possible. usually the low intensity magnetic seaprator ranges from 1300-3500 Gauss and the high type is above 4000 Gauss, sometimes can be up to 12000 Gauss.

During production processes in many industries there are a lot of instances that either need to upgrade the iron content or to remove the iron content. both are to separate the metal from the material, Industrial Magnetic Separators are considered as an effective metal separation equipment. the main component is the magnetic drum, which can be equipment with magnetic blocks with different specifications, can be 1000-12000 Gauss. Mingyuan can produce various specifications of Industrial Magnetic Separators based on clients' specific requirements.

Industrial Magnetic Separators are metal separation equipment mainly used in the mining field, there are many differerent types of magnetic separators for different ores, for example, there are permanent magnetic separator and eddy current separator, and previous one is mainly used for iron content upgrading while the later one is mainly used for iron content removing, according to whether the water is presented in the Industrial magnetic separators, there are wet magnteic separator and dry magnetic separator. the compents of the both types share almost the same structure, namely magnetite drum, frame, reducer and motor. besides the mining, the Industrial Magnetic separators extend their usages to coal washing plant, glass making plant, chemical production plant and so on. and the high intensity magnetic separator is mainly can be used for iron reducing purpose.

Industrial Magnetic Separators are mineral separators which are mainly used for mineral contained iron content, according to its working condition, it can be divided into Wet Magnetic Separator and dry magnetic roller separator, as it needs to add water for the wet magnetic separator while the dry type is no need.it is mainly used for iron ore such as magnetite ore, hematite ore, and some river sand, lake sand and some slags processing. and according to the magnetic field strength, it can be divided into low intensity magnetic separator and high intensity magnetic separator.

Industrial Magnetic Separators

Classification of Industrial Magnetic Separators /Low Intensity Magnetic Separator /High Intensity Magnetic Separator
Wet drum magnetic separator is suitable for strongly magnetic mineral. According to tank structure pattern can be divided into co-current, half-countercurrent, and countercurrent 3 kinds.

Co-current type magnetic separator ( CTS) characteristics advantages: have a large capacity, suitable for processing coarse granularity (0-6mm) strong magnetic materials selection and selection can also work more than one thread. Disadvantages: when Co-current magnetic separator is fed more capacity iron ore, magnetic mineral particles easily lost in the tailings, so to strengthen the operational management and control to be a low pulp level.

Countercurrent type magnetic separator (CTN) characteristics advantages: with a higher recovery rate, suitable for fine-grained (0-1.5mm) strong magnetic minerals roughing and scavenging operations. Disadvantages: to get lower concentrate grade. Because coarse-grained material easy to plug the sorting room, so countercurrent-type magnetic separator does not be suitable for dealing with coarse-grained materials.
Advantages of half-countercurrent type magnetic separator (CTB) characteristics: to get high-quality iron ore concentrate, and better recovery, it is suitable for processing 0.5-0mm of the mineral particles, so half-countercurrent magnetic separator is widely used in different kind of industry. Mingyuan can produce different types magnetic drum separator for sale



Low Intensity Magnetic Separator

High Intensity Magnetic Separator

Component of Industrial Magnetic Separators /Low Intensity Magnetic Separator /High Intensity Magnetic Separator

Industrial Magnetic separators /metal separation equipment, using high-quality ferrite and rare-earth magnet material to be composited, the average tube surface magnetic flux density of 100 ~ 600mT (1000Gauss-6000Gauss). Wet drum magnetic separator mainly made up of the permanent magnet cylinder, roller, magnetic system, tank, transmission parts 5 parts.

Working principle of Industrial Magnetic Separators/ Low Intensity Magnetic Separator /High Intensity Magnetic Separator

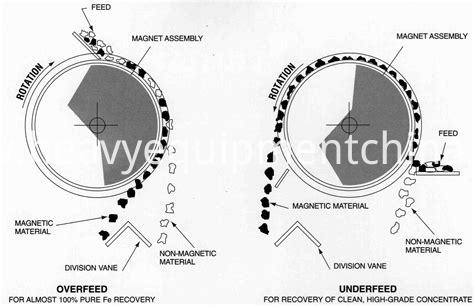

When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.



High Intensity Magnetic Separator


Technical Parameter of Magnetic roller separator / Metal separation equipment /Magnetic Drum Separator For Sale

Model

Shell diameter(mm)

Shell length(mm)

Shell rotation speed(r/min)

Feeding size(mm)

Processing capacity(t/h)

Power(kw)

CTB6012

600

1200

‹35

2-0

10-20

1.5

CTB6018

600

1800

‹ 35

2-0

15-30

2.2

CTB7518

750

1800

‹ 35

2-0

20-45

2.2

CTB9018

900

1800

‹ 35

3-0

40-60

3

CTB9021

900

2100

‹ 35

3-0

45-60

3

CTB9024

900

2400

‹ 28

3-0

45-70

4

CTB1018

1050

1800

‹ 20

3-0

50-75

5.5

CTB1021

1050

2100

‹ 20

3-0

50-100

5.5

CTB1024

1050

2400

‹ 20

3-0

60-120

5.5

CTB1218

1200

1800

‹ 18

3-0

80-140

5.5

CTB1224

1200

2400

‹ 18

3-0

85-180

7.5

CTB1230

1200

3000

‹ 18

3-0

100-180

7.5

CTB1530

1500

3000

‹ 14

3-0

170-280

11

High Intensity Magnetic Separator

Low Intensity Magnetic Separator


Looking for ideal Low Intensity Magnetic Separator Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Industrial Magnetic Separators are quality guaranteed. We are China Origin Factory of High Intensity Magnetic Separator. If you have any question, please feel free to contact us.
