Gravel Vibrating Feeder Price
Gravel Vibrating Feeder Price
Gravel Vibrating Feeder Price
Gravel Vibrating Feeder Price
Gravel Vibrating Feeder Price
  • Gravel Vibrating Feeder Price
  • Gravel Vibrating Feeder Price
  • Gravel Vibrating Feeder Price
  • Gravel Vibrating Feeder Price
  • Gravel Vibrating Feeder Price

Gravel Vibrating Feeder Price

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Download:

Basic Info

Model No.: GZQ-1149

Type: Electromagnetic Vibrating Feeder

Movement Mode: Linear

Usage: Mine, Gravel Field, Metallurgy, Building Materials, Chemical Industry, Ore-dressing, Colliery

Appearance: Open-Type

Max Feeding (mm): 750

Capacity(t/h): 400-600

Motor Power(kw): 20~25

Installation Slope: 10

Chute size(mm): 6000×1300

Overall Dimension: 4890×1830×1320

Product Name: Gravel Vibrating Feeder Price

Max Feed Size: 500-750mm

Material: Stainless Steel

Motor Brand: Kaifeng Or As Per Request

OEM Service: Provided

Bar Distance: According To The Raw Material

Installation Service: Guided By Our Engineer If Required

Installation Founding: Provided

Capacity: 96-560tph

Keyword: Vibrating Feeder

Additional Info

Packaging: Container Loading

Productivity: 120-210 t/h

Brand: Mingyuan

Transportation: Ocean,Land

Place of Origin: Henan, China

Supply Ability: 20 sets per week

Certificate: CE, ISO

HS Code: 8474209000

Port: Qingdao Port,Tianjin Port,Shanghai Port

Product Description

Gravel Vibrating Feeder Price

The Vibrating feeder is a kind of feeding equipment of calculated by cubage; it can feed next procedure evenly and continuously. It is suitable for feeding various non stickiness, such as: ore, coal, cement, Chalmette, limestone of powder shape, grainy and small pieces material, but not suitable for high flowing property power material. rock feeding machine is a necessary part of a complete crushing line.


Working Principle of Gravel Vibrating Feeder Price

Gravel vibrating feeder is composed of vibrating frame, spring, vibrator, motor vibration device and motor. The Mining Mobile Vibrating Feeder consists of two fixed eccentric axes, and the gears of these gears are jogging. When installing, the two gears must be swaying according to the signs. By driving the motor, two eccentric axes start to rotate, resulting in a linear high power, forcing the feeder to vibrate. Through vibration, the material slides and hangs on the funnel, moving forward. When the material passes through the screening part, the smaller part will drop, avoiding further breakage, so as to achieve the screening purpose.

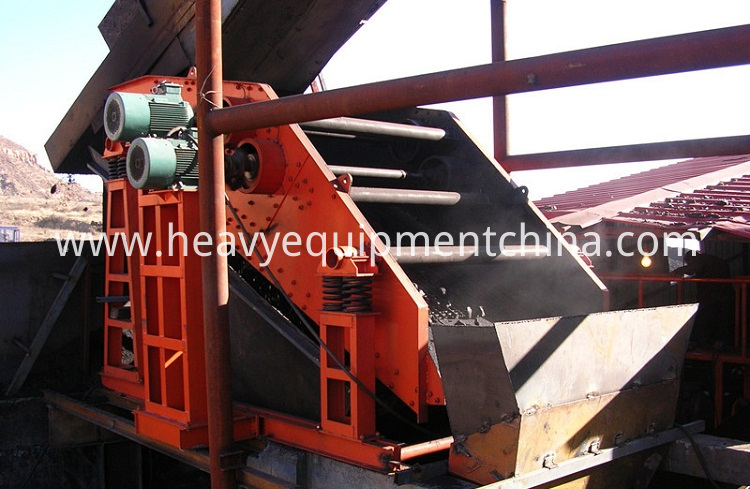

Gravel Vibrating Feeder


Specification of Gravel Vibrating Feeder Price

del Max feed size

Capacit

y

Speed of eccentric shaft

Motor powe

r

Overall dimensionsmm Weight Size of funnel
GZD- 0938 500 96-160 500-714 11 3882*2224*2121 4082 3800*950
GZD-0949 500 120-240 500-800 15 4957*2277*2150 5004 4900*950
GZD-1149 580 120-280 500-800 15 4957*2400*2150 5320 4900*1100
GZD-1159 600 200-350 500-800 22 6000*2500*2150 6130 5900*1100
GZD-1360 750 400-560 500-800 22 6082*2580*2083 7800 600

Features of Gravel Vibrating Feeder Price:

1.Stable vibration, reliable operation and long service life.
2.Can adjust the vibration exciter, change and control feeding flow at any time, convenient adjustment and stability.
3.Vibratory Motor as vibrator, low noise and power consumption, good adjustment performance, the phenomenon of non washed materal.
4.Simple structure, reliable operation, easy adjustment and installation, light weight, small size, easy mintenance.
5.Special bar design which can prevent materials from blocking, spaces between bars are adaptable.
6.Double screening and embodies the functions of dirt removing, screening and feeding.

Company Information

Henan Mingyuan Heavy Industry Machinery Co., LTD is one high-tech enterprise, which involves R&D, manufacturering, sales and service as well. In the past 20 years, we devote ourselves to producing mining equipments such as Gravel Vibrating Feeder Price, fine crusher, Impact Crusher hammer mill crusher, vsi sand maker, cone crusher, Sand Washing Machine( both wheel type and spiral), Rotary Dryer, Ball Mill , Rotary Kiln, Cement Ball Mill, Magnetic Separator, belt Conveyor , shaking table, spiral chute, and so on.
In recently years, we have developped our business in new areas, such as grain dryer, waste material recycling plant for waste tyre, rubber, bottle, and so on. for all equipment we provide we can send our experienced engineer to your workshop to guide the installtion until the whole plant works normally.


Vibrating Cap Feeder

Vibrating Feeder

FAQ of Gravel Vibrating Feeder Price

Q: Are you a mining machinery manufacturer?
A: Yes, our company warmly welcome clients to visit our plant at any time. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc.

Q: Which country have your products been exported?
A: We have been exported business for 20 years and we have lots of customers and agents in the world, such as Middle East, Oman, South Africa, Canada, America, etc.

Q: How long is the warranty of your equipment? Does your company supply the spare parts?
A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.

Q: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.

Looking for ideal Vibrating Cap Feeder Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Long Distance Linear Vibration Feeder are quality guaranteed. We are China Origin Factory of Vibrating Feeder For Sale. If you have any question, please feel free to contact us.
