Coal Crusher Machine Hammer Crusher For Sale

Share to:
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Terms of Trade: FOB,CFR,CIF
Min. Order: 1
Delivery Time: 30
Download:
Basic Info
Model No.:PC400*300
Type: Hammer Crusher
Motor Type: AC Motor
Motor Power: 37kw
Application: Chemistry
Materials: Limestone
Outlet Size: 18-48mm
Inlet Size: 300×1300mm
Condition: New
Product Name: Coal Crusher Machine Hammer Crusher For Sale
Material: Casting Steel
Rotor Diameter: 1000 Mm
Rotor Length: 800 Mm
Max Feeding Size: 200 Mm
Output Size: Less Than 15 Mm
Capacity: 25-40 T/h
Diesel Engine: Optional
Installation Founding: Provided
Keywords: Hammer Crusher
Additional Info
Packaging: Container Loading
Productivity: 5-200 t/h
Brand: Mingyuan
Transportation: Ocean
Place of Origin: Henan, China
Supply Ability: 5 sets per week
Certificate: CE, ISO
HS Code: 8474209000
Port: Qingdao Port,Tianjin Port,Shanghai Port
Product Description

Coal Crusher Machine Hammer Crusher For Sale

Hammer crusher has the advantages of simple structure, large crushing ratio and high production efficiency etc. And can crush in dry & wet way. It is widely used in to crush the medium hardness and brittleness materials in mining, cement, coal, metallurgy, building materials, roads, fuel and other departments. The grate gap of hammer crusher can be adjusted to meet different particle size as requirements.

Application of Coal Crusher Machine Hammer Crusher For Sale

Applied in the crushing and fine crushing of medium-hard materials in cement,chemicals,electric power,metallurgical industries,etc,such as limestone,slag,coke,coal and other materials.
Crumble the materials of the size 60 to 180 mm into 25mm or 25mm below.
To crush various materials with compressive resistance under 150Mpa.

Working Principle of Coal Crusher Machine Hammer Crusher For Sale

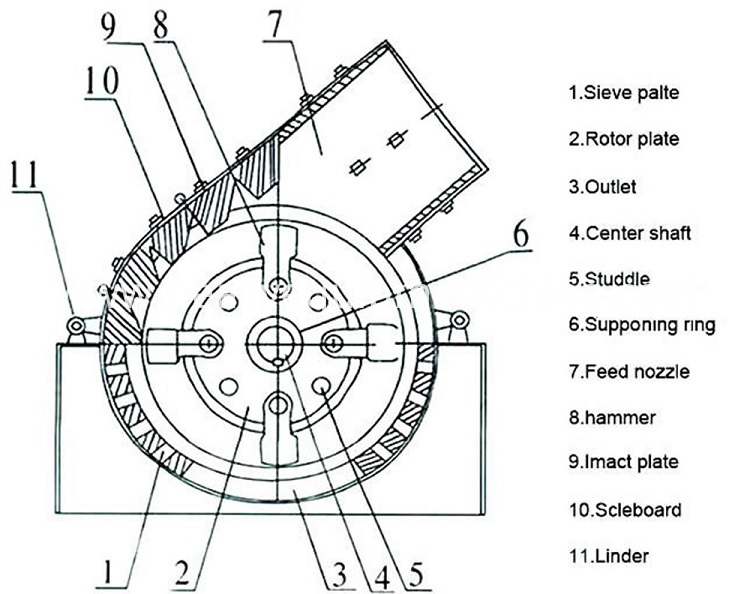

The motor drives the rotor to spin at high speed, materials are fed into the crushing cavity evenly , and the materials could be impacted, cut and tore by high speed spinning hammerhead till they are crushed completely. Meanwhile, the gravity action of materials forces them to crash the baffle and grate bars on the frame. Materials with particle size smaller than the screen size will pass the sieve plate while those with bigger particle size are stopped on the plate and will continue to be impacted and grounded by the hammer until they are crushed to the required particle size, finally, crushed materials will be discharged from the hammer crusher through the sieve plate.



Hammer Crusher Machine

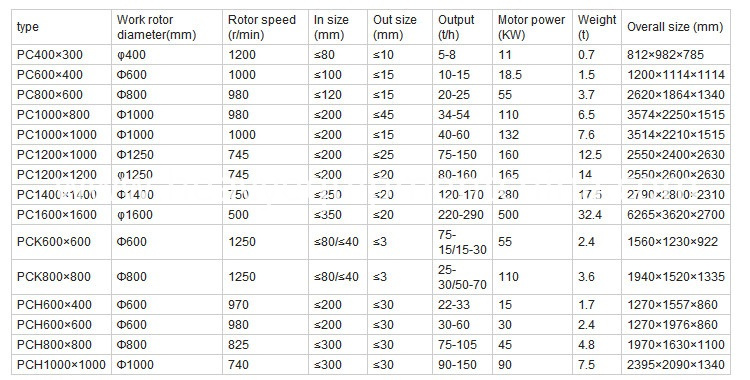

Specification of Coal Crusher Machine Hammer Crusher For Sale

Hammer Mill Crusher


Features of Coal Crusher Machine Hammer Crusher For Sale

The rotor is strengthened by finite element analysis.
High crushing ratio.
The crushing ratio is 10~25 or even higher to 50.
The stone impact theory effectively reduces the wear load of hammerhead and grille plate.

The sealing structure solves the problem of dust pollution and leakage in the crushing workshop.


Heavy Hammer Crusher

Company Information

Henan Mingyuan Heavy Industry Machinery Co., LTD is one high-tech enterprise, which involves R&D, manufacturering, sales and service as well. In the past 20 years, we devote ourselves to producing mining equipments such as Coal Crusher Machine Hammer Crusher For Sale, Jaw Crusher, fine crusher, Impact Crusher hammer mill crusher, vsi sand maker, cone crusher, Sand Washing Machine( both wheel type and spiral), Rotary Dryer, Ball Mill, Rotary Kiln, Cement Ball Mill, Magnetic Separator, belt Conveyor , shaking table, spiral chute, and so on.

In recently years, we have developped our business in new areas, such as grain dryer, waste material recycling plant for waste tyre, rubber, bottle, and so on. for all equipment we provide we can send our experienced engineer to your workshop to guide the installtion until the whole plant works normally.

Coal Crusher Machine


Our Services of Coal Crusher Machine Hammer Crusher For Sale

1. Pre-sale services:
Act as a good adviser and assistant of clients
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients;
2.Services during the sale:
Respect clients; considering every aspect and details for our customers
(1) Check products ahead of delivery;
(2) Keep costumers informed about the delivery process
3. After-sale services
We promise excellent after-sale service!
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4) Take initiative to eliminate the troubles rapidly at site;
(5) Provide maintenance for big items.
And other rational requirement brought up by our clients.

Looking for ideal Hammer Crusher Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Hammer Mill Crusher are quality guaranteed. We are China Origin Factory of Heavy Hammer Crusher. If you have any question, please feel free to contact us.
