Limestone Grinding Ball Mill For Ceramic

Share to:
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Terms of Trade: FOB,CFR,CIF
Min. Order: 1
Delivery Time: 30
Download:
Basic Info
Model No.:Mingyuan Ball Mill
Product Name: Limestone Grinding Ball Mill For Ceramic
Applicable Material: Gold Ore, Lead Ore, Zinc Ore, Chromite
Output Size: 200 Mesh
Installation: Guided By Our Engineer
Warranty: 12 Months
After-sale Service: Provide
Feed Opening Size: 25mm
Material Of Mill Shell: Q235
Diameter Of Cement Mill: 1.8-4.3m
Keywords: Ball Mill
Additional Info
Packaging: Container Loading
Productivity: 2-75 t/h
Brand: Mingyuan
Transportation: Ocean
Place of Origin: Henan, China
Supply Ability: 5 sets per month
Certificate: CE, ISO
HS Code: 8430310000
Port: Qingdao Port,Tianjin Port,Shanghai Port
Product Description

Limestone Grinding Ball Mill For Ceramic

Ball mill, also known as grinding mill, is the crushing material of the key equipment, widely used in cement, silicate, new building materials, refractories, fertilizers, ferrous metal ore processing and other pulverizing production lines, medium hardness nonferrous metals, glass ceramics, etc. They are manufactured with the best quality materials and processes, provide the most efficient, trouble-free and economical combination of materials from (5-30mm) to different product sizes.
According to different ball milling methods, limestone grinding ball mill can be divided into two types: dry and wet. Due to different unloading methods, there are two types of ball mill: input type and overflow type, or center unloading type and side unloading type. According to the different form of support, it can be divided into two types: bearing mill and Bush mill. Depending on the type of transmission, the edge type and the center type are available. In addition, overflow ball mills are commonly used in most ball mill grinding applications and provide the simplest, trouble-free and most economical grinding methods. Ball mills are usually matched with spiral screens for draining trunnions to provide material dimensions and classification.

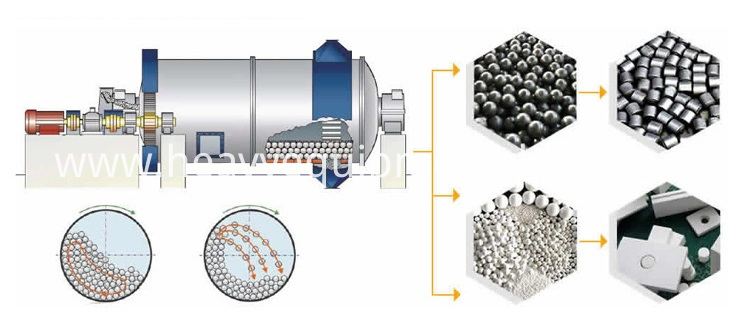

Working principle of Limestone Grinding Ball Mill For Ceramic:

The Micronizer Ball Mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging.


Limestone Grinding Ball Mill For Ceramic


Features of Limestone Grinding Ball Mill For Ceramic

(1) The Ball Grinding Mill is an efficient tool for grinding many materials into fine powder;
(2) The Ball Grinding Mill is used to grind many kinds of mine and other materials, or to select the mine;
(3) The Ball Grinding Mill is widely used in building material, and chemical industry.
(4) There are two ways of grinding: the dry way and the wet way.
(5) The Ball Grinding Mill can be divided into tabular type and flowing type according to different expelling mine
(6) To use the Ball Grinding Mill , the material to be ground is loaded into the neoprene barrel that contains grinding media.
(7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
(8) The longer the Ball Grinding Mill runs, the finer the powder will be.
(9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Grinding Mill runs.
(10) Our Ball Grinding Mill have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.


Limestone Grinding Ball Mill For Ceramic


Company Information

Henan Mingyuan Heavy Industry Machinery Co., LTD is one high-tech enterprise, which involves R&D, manufacturering, sales and service as well. In the past 20 years, we devote ourselves to producing mining equipments such as Limestone Grinding Ball Mill For Ceramic, Jaw Crusher , fine crusher, Impact Crusher hammer mill crusher, vsi sand maker, cone crusher, Sand Washing Machine( both wheel type and spiral), Rotary Dryer, ball mill, Rotary Kiln, Cement Ball Mill, Magnetic Separator, belt Conveyor , shaking table, spiral chute, and so on.

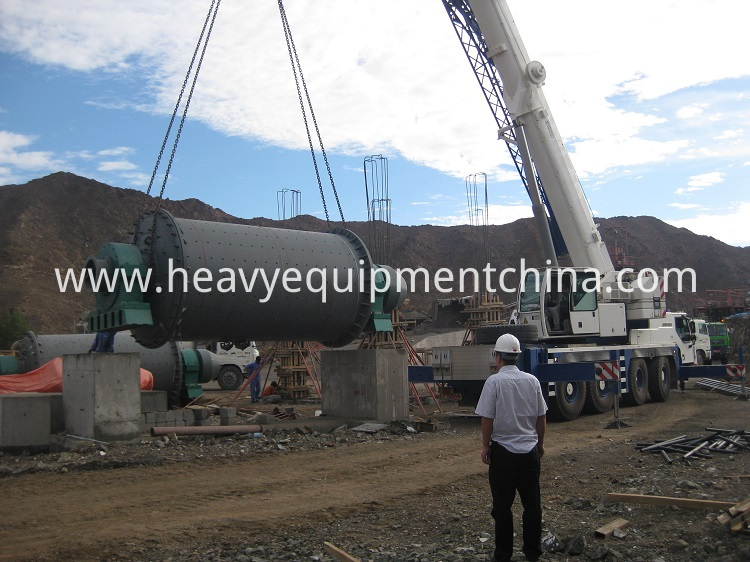

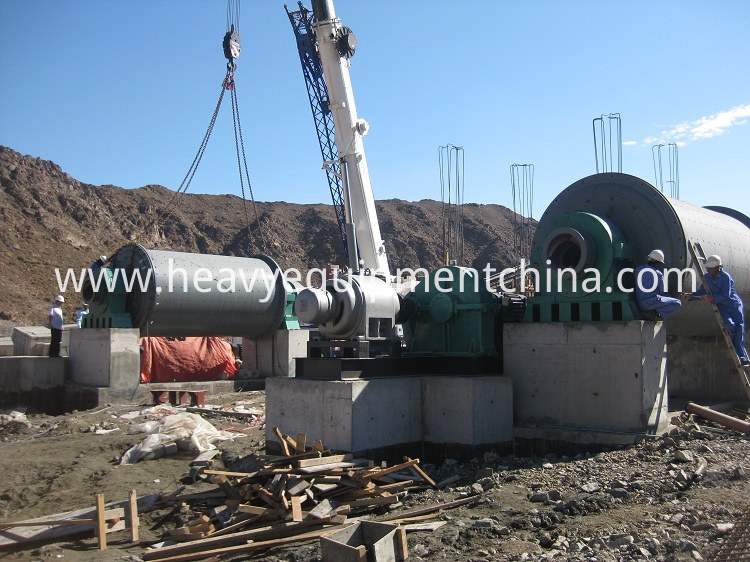

In recently years, we have developped our business in new areas, such as grain dryer, waste material recycling plant for waste tyre, rubber, bottle, and so on. for all equipment we provide we can send our experienced engineer to your workshop to guide the installtion until the whole plant works normally.
Limestone Grinding Ball Mill For Ceramic



Limestone Grinding Ball Mill For Ceramic

Looking for ideal Ceramic Ball Mill Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Ball Mill Machines are quality guaranteed. We are China Origin Factory of Small Ball Mill Machine. If you have any question, please feel free to contact us.
