River Sand Making Machines Vertical Shaft Impact Crusher
  • River Sand Making Machines Vertical Shaft Impact Crusher
  • River Sand Making Machines Vertical Shaft Impact Crusher
  • River Sand Making Machines Vertical Shaft Impact Crusher
  • River Sand Making Machines Vertical Shaft Impact Crusher
  • River Sand Making Machines Vertical Shaft Impact Crusher

River Sand Making Machines Vertical Shaft Impact Crusher

Payment Type:
L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean
Port:
Qingdao Port,Tianjin Port,Shanghai Port
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: VSI8518

Brand: Mingyuan

Type: Impact Crusher

Motor Type: AC Motor

Motor Power: 37kw

Application: Construction

Materials: Limestone

Outlet Size: 18-48mm

Inlet Size: 300×1300mm

Condition: New

Applicable Material: Granite, Limestone, River Stone, Coal

Material Of Blow Bar: High Chrome

Motor Brand: Kaifeng Or As Per Request

Power Of Tank Heater: 2KW

Feed Size: 45-50mm

Shaft Speed: 1180-1310mm

Dimension: 5000*2700*3300mm

Key Words: Vertical Shaft Impact Crusher

Product Name: River Sand Making Machines Vertical Shaft Impact Crusher

Capacity: 30-450tph

Supply Ability & Additional Information

Packaging: Container Loading

Productivity: 70-520 t/h

Transportation: Ocean

Place of Origin: Henan, China

Supply Ability: 5 sets per month

Certificate: CE, ISO

HS Code: 8430310000

Port: Qingdao Port,Tianjin Port,Shanghai Port

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Container Loading

River Sand Making Machines Vertical Shaft Impact Crusher

Vertical shaft impact crusher(Sand Making Machine) is the latest product of our company which absorbed the advanced technology from German.
It can provide the best material for the highway, railway, construction project and concrete mixing station etc. Lower cost and good performance decide that this kind of equipment is a preferred choice for artificial sand making or stone reshaping.

Application of vertical sand making machine

1. Pebble, Rock( the limestone, granite, basalt, aluminum, andesite, etc.), Ore tailings, Attle artificial sand production.
2. Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3. Sand making production and stone reshaping production in water conservancy and hydropower engineering field,highway,railway,bridge,passenger line,airport runway,municipal engineering and high-rise buildings.
4. The grinding anterior finely process of mining areas. Building materials, mining, metallurgy, hemical industry, cement, abrasive, refractory material, etc.
5. The crush of high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste.
6. The production of glass,quartz sand and other high purity material.

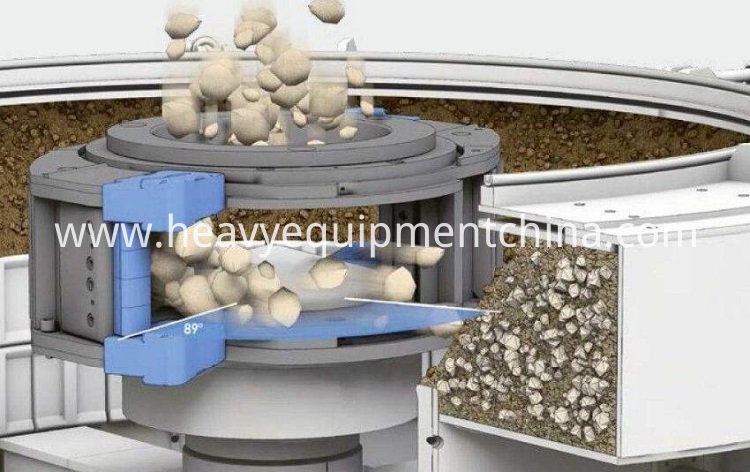

Working Principle of River Sand Making Machines Vertical Shaft Impact Crusher

The materials fall into the crusher and be divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials bump into each other at a high speed and are crushed in this way under the centrifugal force. The end products go out from the bottom of the machine, and users can get the required products size after materials are screened by the vibrating screen.

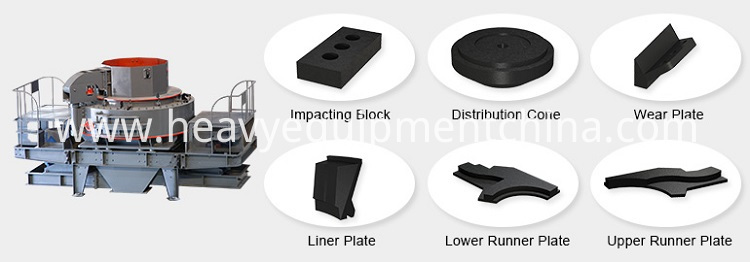

River Sand Making Machines Vertical Shaft Impact Crusher


Features of River Sand Making Machines Vertical Shaft Impact Crusher

1. Simply structure and low investment.
2. High efficiency and low
3. Scaleboard of the impeller is easy in maintenance and durable.
4. Appliable to fine and coarse grinding.
5. Slightly influenced by the moisture content of the material. The max moisture content is 8%.
6. Suitable for crushing materials of middle and high hardness.
7. Cubic shaped end products, high density of piling up and low iron pollution.
8. Working noise < 75db, and little dust pollution.

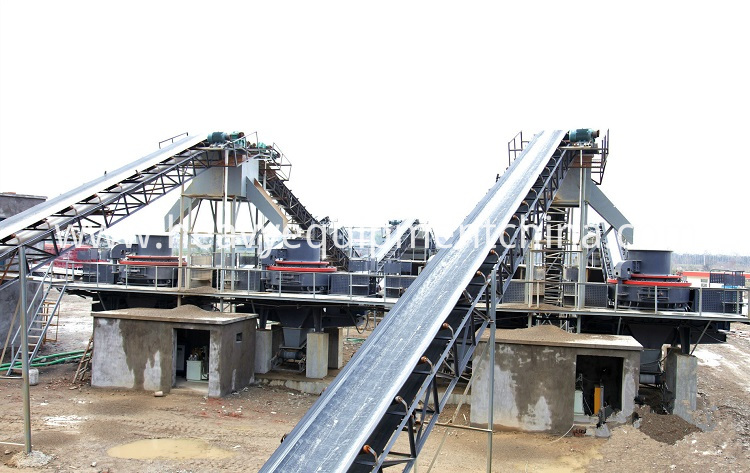

VSI Stone Crusher

Specification of River Sand Making Machines Vertical Shaft Impact Crusher

Model

 VSI7611

 VSI8518

 VSI9526

VSI1140

Capacity(t/h)

Feed both at center
 and at sides

120-180

200-260

300-380

450-520


Feed at center

60-90

100-130

150-190

225-260

Max feed size
(mm)

Sofe material

<35

<40

<45

<50


Hard material

<30

<35

<40

<45

Rotation speed
(r/min)

1700-1890

1520-1690

1360-1510

1180-1310

Power(KW)

110-150

180-220

264-320

400-440

Overall dimension
 L*W*H (mm)

3700×2150×2100

4140×2280×2425

4560×2447×2778

5000×2700×3300

Weight(t)

7.8

10.3

16

25.6

Power supply

380V,50HZ

380V,50HZ

380V,50HZ

380V,50HZ

Vibrating sensor

detect range: 0.1-20mm/s continous and adjustable

Lubrication and
 hydraulic station

Power(Kw)

2×0.31KW


Safety assuance.

Double

Company Information

Henan Mingyuan Heavy Industry Machinery Co., LTD is one high-tech enterprise, which involves R&D, manufacturering, sales and service as well. In the past 20 years, we devote ourselves to producing mining equipments such as River Sand Making Machines Vertical Shaft Impact Crusher, Jaw Crusher, fine crusher, impact crusher hammer mill crusher, vsi sand maker, cone crusher, Sand Washing Machine( both wheel type and spiral), Rotary Dryer, Ball Mill , Rotary Kiln, Cement Ball Mill, Magnetic Separator, belt Conveyor , shaking table, spiral chute, and so on.
In recently years, we have developped our business in new areas, such as grain dryer, waste material recycling plant for waste tyre, rubber, bottle, and so on. for all equipment we provide we can send our experienced engineer to your workshop to guide the installtion until the whole plant works normally.

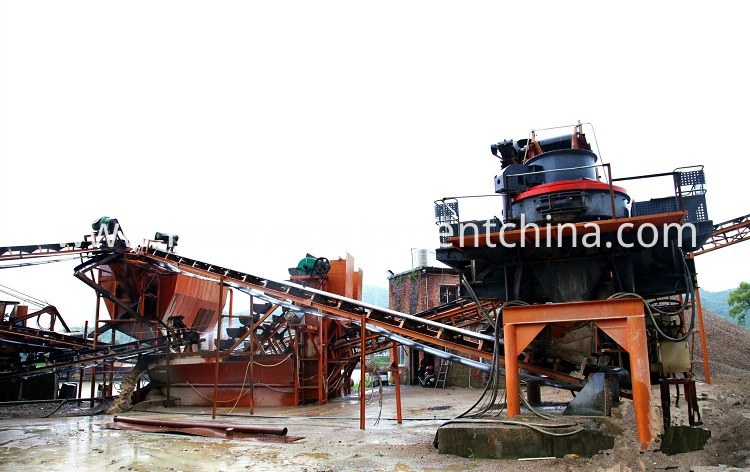

Vsi Series Vertical Stone Crusher Machine

River Sand Making Machines Vertical Shaft Impact Crusher


River Sand Making Machines Vertical Shaft Impact Crusher


Contact Us

According to customers' demand, we supply the services in a flexible way not only the traditional services but also the internet online services. Our engineer is 24 hours online. We try our best to carve out maket and provide services all the time. Before customers purchase, we will send our engineers to customers site to design the best flow chart. After purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and efficiency. We welcome customers from home and abroad to visit our company and carry put cooperation!


River Sand Making Machines Vertical Shaft Impact Crusher
